help !! 2007 gto airboat 350 starting issue.
-
- Southern Airboat Member
- Posts: 6
- Joined: Sun Mar 29, 2015 5:42 pm
- Location: Harlingen, Texas
help !! 2007 gto airboat 350 starting issue.

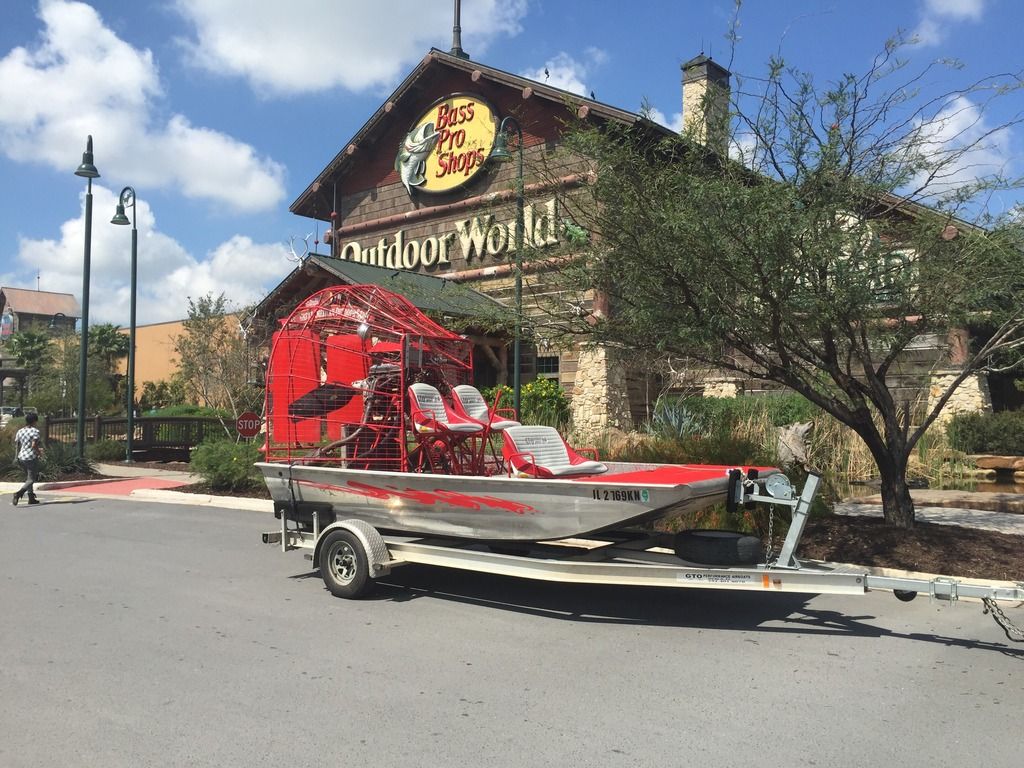

I'm new to the airboat community and bought a nice used 2007 airboat with a nice 350 carbureted engine. Everything is working great just has an issue when starting the boat. You put the key in and turn it and it goes click then the second try it still goes click but on the third try every time it fires up like both and runs great. I changed the starter and cleaned all the engine and starter grounds but it still does the same thing. Even cleaned the wires that meet the key ignition no change. It has the battery swith from battery one or two or all. Is that the problem I need help please guys. Thanks.


-
- Southern Airboat Member
- Posts: 6
- Joined: Sun Mar 29, 2015 5:42 pm
- Location: Harlingen, Texas
Re: help !! 2007 gto airboat 350 starting issue.
I forgot to mention the battery's are new and testing good.
Re: help !! 2007 gto airboat 350 starting issue.
Is there a ground strap from rigging to engine and one from battery to rigging? Sounds like a lack of grounding to me.
Successful people do what others won't or can't!
-
- Site Supporter - I
- Posts: 1150
- Joined: Mon Apr 21, 2014 5:57 pm
Re: help !! 2007 gto airboat 350 starting issue.
You said you changed the starter did you make them test it. A friend just got a new starter and the first one they gave him was bad. I do agree sounds like a ground or starter selenoid. Does GTO use a starter relays.
Re: help !! 2007 gto airboat 350 starting issue.
Change out ign. Switch. I had one go bad and that is what it did. Buy a good marine ign. Switch. Not some cheap piece of junk from advance auto
http://www.flickr.com/photos/nomad41/
Treasurer FAA
Member:FAA, KRVSA ,IRCAA, FSCA
My old boat 14.5x8 Diamondback ,SBC Stroker,2.68 Stinger,Sensenich 82" R
Svcliche@yahoo.com
Treasurer FAA
Member:FAA, KRVSA ,IRCAA, FSCA
My old boat 14.5x8 Diamondback ,SBC Stroker,2.68 Stinger,Sensenich 82" R
Svcliche@yahoo.com
- pontoon outlaw
- Site Supporter - IV
- Posts: 1670
- Joined: Fri Dec 04, 2009 7:56 pm
- Location: palm bay, ride in Cocoa
Re: help !! 2007 gto airboat 350 starting issue.
just what Nomad said
got 20,000 dollars in the Motor and Rigging, Don't put a china pos for an ignition switch to start it


Re: help !! 2007 gto airboat 350 starting issue.

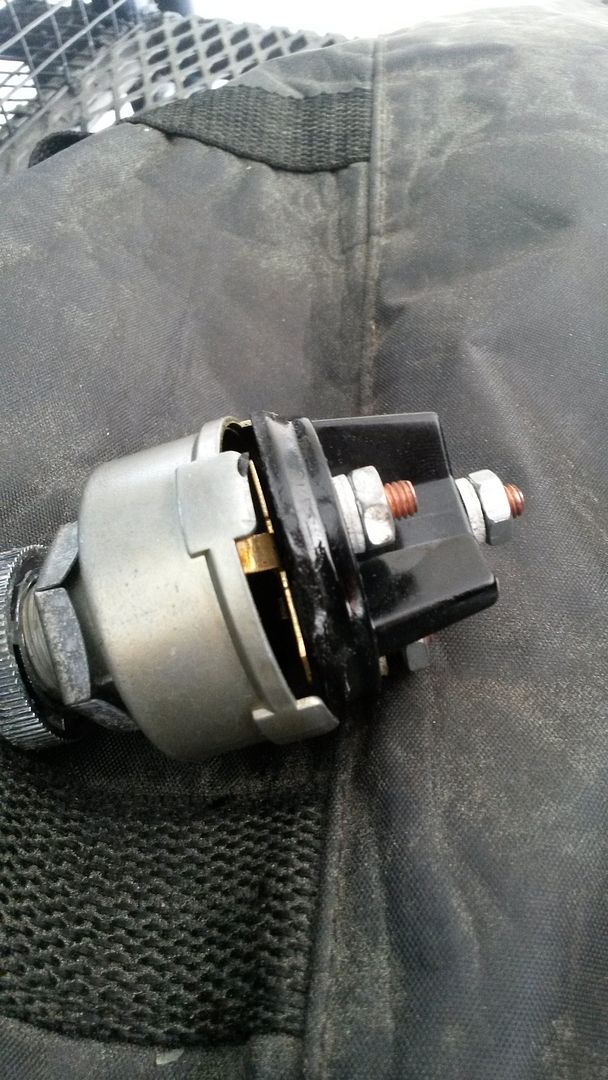

mine was clicking and dragging last week... everything was good checked the ignition switch had a crack in it and when I pulled it out the whole back side fell apart glad it didn't turn the motor off while on a plane new one in works great

13' laser 360sbc oxdrive 2.68 .... 80" 3 blade whispertip ex

-
- Southern Airboat Member
- Posts: 21
- Joined: Mon May 23, 2011 9:40 am
- Location: Port Orange, FL
Re: help !! 2007 gto airboat 350 starting issue.
When you cleaned the wires attached to the ignition switch, did you carefully try touching the 12 volt wire from the battery to the wire going to the starter to see if the engine would crank? Did you also clean the ignition switch wire where it attached to the starter. I am assuming that all the wires have crimp on terminals. These can go bad inside the crimp. I notice from you boat picture that is has IL registration. Where the boat has spent its last 7 years can make a big difference on the amount of corrosion on electrical connections. My guess is that the three try starting sequence is heating up and scraping clean the contacts in the ignition switch until enough contact is made to send enough current to the starter solenoid.
-
- Southern Airboat Member
- Posts: 6
- Joined: Sun Mar 29, 2015 5:42 pm
- Location: Harlingen, Texas
Re: help !! 2007 gto airboat 350 starting issue.
Ya the boat spent all its life in Illinois. Stored indoors. I did clean up the wire that connect to the starter and to the engine block. The battery ground is to the engine block and I also cleaned that to. As far as the ignition where you stick the key in I only clean the wires that connect to the back of it. I didn't connwxt straight. To the battery. The starter was tested at the store works perfectly. So how much is a new ignition and is that what u guys think. Or any ideas. Thanks for the help !
Re: help !! 2007 gto airboat 350 starting issue.
http://www.flickr.com/photos/nomad41/
Treasurer FAA
Member:FAA, KRVSA ,IRCAA, FSCA
My old boat 14.5x8 Diamondback ,SBC Stroker,2.68 Stinger,Sensenich 82" R
Svcliche@yahoo.com
Treasurer FAA
Member:FAA, KRVSA ,IRCAA, FSCA
My old boat 14.5x8 Diamondback ,SBC Stroker,2.68 Stinger,Sensenich 82" R
Svcliche@yahoo.com
-
- Southern Airboat Member
- Posts: 6
- Joined: Sun Mar 29, 2015 5:42 pm
- Location: Harlingen, Texas
Re: help !! 2007 gto airboat 350 starting issue.
That's a nice ignition switch ! Does everyone agree that's the problem?
-
- Site Supporter - IV
- Posts: 1848
- Joined: Tue Feb 23, 2010 6:04 pm
- Location: Nebraska
Re: help !! 2007 gto airboat 350 starting issue.
If the starter clicks the switch is doing its job, I wold think voltage check at the starter with switch engaged would tell the story.
Twister69z
Twister69z
If you don't have time to do it right the first time ,
Where are you going to get the time to do it a second time?
Where are you going to get the time to do it a second time?
Re: help !! 2007 gto airboat 350 starting issue.


13' laser 360sbc oxdrive 2.68 .... 80" 3 blade whispertip ex

-
- Southern Airboat Member
- Posts: 158
- Joined: Mon Jan 24, 2011 11:11 pm
- Location: Orange county-- the wrong one. I'm in California
Re: help !! 2007 gto airboat 350 starting issue.
The starter switch only operates the solenoid, very low amperage. Start at the beginning and work your way back
Check to see if the switch sends 12v to the solenoid, check to see if the solenoid engages the starter. Check to see if the Pinon gear is engaging property, make sure it's adjusted right, fit a paper clip between the starter gear and the flywheel.
Since you know the battery is good that leaves the starter motor and the motor. Where is the initial timing set? Does it sometimes kick back at the starter?
Check to see if the switch sends 12v to the solenoid, check to see if the solenoid engages the starter. Check to see if the Pinon gear is engaging property, make sure it's adjusted right, fit a paper clip between the starter gear and the flywheel.
Since you know the battery is good that leaves the starter motor and the motor. Where is the initial timing set? Does it sometimes kick back at the starter?
17x8 Circle H powered by a TurnKey LS3, 2.55 ox box and 82" 3 blade JX
- akblackdawg
- Site Supporter - III
- Posts: 2969
- Joined: Mon Jun 29, 2009 1:53 am
- Location: Wasilla, ALASKA
Re: help !! 2007 gto airboat 350 starting issue.
If you change out, I suggest seperate on/off key switch and then a push button start switch. Been very happy with mine. Welcome to SA and be careful with your new boat, looks nice, but they can get away from you in a second. Bud

15x8 Alumatech hull, with enclosed cab, aluminum cage, LS 3, 6.2 aluminum block ffi, 2.7 Balistic Box, sensinich superwide 3 blade. Built for year around riding in Alaska
-
- Site Supporter - III
- Posts: 3061
- Joined: Thu Nov 21, 2013 11:38 am
- Location: Naturecoast, Florida
Re: help !! 2007 gto airboat 350 starting issue.
Next time it acts up try jumping the solenoid with a screw driver and see if it cranks. (S) terminal
Re: help !! 2007 gto airboat 350 starting issue.
X2 what Swamphunter said. If using the screwdriver always works, I am betting on either the key switch or the wiring. I had to change the key switch in my boat not too long ago for similar issues.
-
- Southern Airboat Member
- Posts: 6
- Joined: Sun Mar 29, 2015 5:42 pm
- Location: Harlingen, Texas
Re: help !! 2007 gto airboat 350 starting issue.
Cool I will replace the ignition switch. Another mechanic suggested I run battery one directly to the engine instead of through the perko switch he says it's better to run it direct better connection. What you Guys think??
Re: help !! 2007 gto airboat 350 starting issue.
I have had similar issues with starting. It sounds like a bad starter solenoid or starter. Jumper from the Starter terminal to the small wire on the starter. Hook your volt meter from engine block to big terminal on the Starter.If it starts ok then the starter /starter solenoid is good and you have a wiring issue.
If the voltage is over 10 volts with a good battery the starter/solenoid is bad, If voltage is less than 10 volts check battery voltage is should be over 10 volts. If voltage less than 10 volts battery problem / or starter pulling way to many amps. If voltage as measure from the + to the - terminals is over 10 to 11 volts the you need to look for wiring either or plus side of battery to starter or the ground side from Battery to engine block
Next check from engine block to small terminal on starter voltage if less than the voltage drop you got in the first step then you have a wiring issue between the small wire on the starter back thru the ignition switch thru to the battery switch to the plus side of the battery. I found in the wiring harness near the ignition switch a junction made up of a spaded lug connection ( this was for a disconnect for removing the instrument panel) It was wrapped up in tape. I found this by feeling the wires and felt a hot spot (warm). Check you ground leads from battery to engine to see if they are warm when trying to start, These do go bad. Feel the terminal ends. You will have to start at the starter and measure each wire for voltage drop all the way back to the Battery terminal. When this connection heated up it worked ok. You will need to check each wire and switch.
Check voltage drop from engine to battery negative terminal.If over a volt 1 volt bad ground wire or connection.On my gto and a friends they grounded the neg of the battery to the seat stand. Then grounded the motor to another part of the engine stand. I had about 3]4 volt drop there. Corrected by running the ground wire to the same stud as the ground wire from the battery.
The voltage drop on the ground side is less than 1/2 volt. Check the positive at the starter to engine block should bee over 11 volts with good battery and good wires and battery switch and connecters at the battery.
Call me 979 415 4875 and let me know if you got it fixed or need more help
If the voltage is over 10 volts with a good battery the starter/solenoid is bad, If voltage is less than 10 volts check battery voltage is should be over 10 volts. If voltage less than 10 volts battery problem / or starter pulling way to many amps. If voltage as measure from the + to the - terminals is over 10 to 11 volts the you need to look for wiring either or plus side of battery to starter or the ground side from Battery to engine block
Next check from engine block to small terminal on starter voltage if less than the voltage drop you got in the first step then you have a wiring issue between the small wire on the starter back thru the ignition switch thru to the battery switch to the plus side of the battery. I found in the wiring harness near the ignition switch a junction made up of a spaded lug connection ( this was for a disconnect for removing the instrument panel) It was wrapped up in tape. I found this by feeling the wires and felt a hot spot (warm). Check you ground leads from battery to engine to see if they are warm when trying to start, These do go bad. Feel the terminal ends. You will have to start at the starter and measure each wire for voltage drop all the way back to the Battery terminal. When this connection heated up it worked ok. You will need to check each wire and switch.
Check voltage drop from engine to battery negative terminal.If over a volt 1 volt bad ground wire or connection.On my gto and a friends they grounded the neg of the battery to the seat stand. Then grounded the motor to another part of the engine stand. I had about 3]4 volt drop there. Corrected by running the ground wire to the same stud as the ground wire from the battery.
The voltage drop on the ground side is less than 1/2 volt. Check the positive at the starter to engine block should bee over 11 volts with good battery and good wires and battery switch and connecters at the battery.
Call me 979 415 4875 and let me know if you got it fixed or need more help
Re: help !! 2007 gto airboat 350 starting issue.
I have had similar issues with starting. It sounds like a bad starter solenoid or starter. Jumper from the Starter terminal to the small wire on the starter. Hook your volt meter from engine block to big terminal on the Starter.If it starts ok then the starter /starter solenoid is good and you have a wiring issue.
If the voltage is over 10 volts with a good battery the starter/solenoid is bad, If voltage is less than 10 volts check battery voltage is should be over 10 volts. If voltage less than 10 volts battery problem / or starter pulling way to many amps. If voltage as measure from the + to the - terminals is over 10 to 11 volts the you need to look for wiring either or plus side of battery to starter or the ground side from Battery to engine block
Next check from engine block to small terminal on starter voltage if less than the voltage drop you got in the first step then you have a wiring issue between the small wire on the starter back thru the ignition switch thru to the battery switch to the plus side of the battery. I found in the wiring harness near the ignition switch a junction made up of a spaded lug connection ( this was for a disconnect for removing the instrument panel) It was wrapped up in tape. I found this by feeling the wires and felt a hot spot (warm). Check you ground leads from battery to engine to see if they are warm when trying to start, These do go bad. Feel the terminal ends. You will have to start at the starter and measure each wire for voltage drop all the way back to the Battery terminal. When this connection heated up it worked ok. You will need to check each wire and switch.
Check voltage drop from engine to battery negative terminal.If over a volt 1 volt bad ground wire or connection.On my gto and a friends they grounded the neg of the battery to the seat stand. Then grounded the motor to another part of the engine stand. I had about 3]4 volt drop there. Corrected by running the ground wire to the same stud as the ground wire from the battery.
The voltage drop on the ground side is less than 1/2 volt. Check the positive at the starter to engine block should bee over 11 volts with good battery and good wires and battery switch and connecters at the battery.
Call me 979 415 4875 and let me know if you got it fixed or need more help
If the voltage is over 10 volts with a good battery the starter/solenoid is bad, If voltage is less than 10 volts check battery voltage is should be over 10 volts. If voltage less than 10 volts battery problem / or starter pulling way to many amps. If voltage as measure from the + to the - terminals is over 10 to 11 volts the you need to look for wiring either or plus side of battery to starter or the ground side from Battery to engine block
Next check from engine block to small terminal on starter voltage if less than the voltage drop you got in the first step then you have a wiring issue between the small wire on the starter back thru the ignition switch thru to the battery switch to the plus side of the battery. I found in the wiring harness near the ignition switch a junction made up of a spaded lug connection ( this was for a disconnect for removing the instrument panel) It was wrapped up in tape. I found this by feeling the wires and felt a hot spot (warm). Check you ground leads from battery to engine to see if they are warm when trying to start, These do go bad. Feel the terminal ends. You will have to start at the starter and measure each wire for voltage drop all the way back to the Battery terminal. When this connection heated up it worked ok. You will need to check each wire and switch.
Check voltage drop from engine to battery negative terminal.If over a volt 1 volt bad ground wire or connection.On my gto and a friends they grounded the neg of the battery to the seat stand. Then grounded the motor to another part of the engine stand. I had about 3]4 volt drop there. Corrected by running the ground wire to the same stud as the ground wire from the battery.
The voltage drop on the ground side is less than 1/2 volt. Check the positive at the starter to engine block should bee over 11 volts with good battery and good wires and battery switch and connecters at the battery.
Call me 979 415 4875 and let me know if you got it fixed or need more help
-
- Site Supporter - IV
- Posts: 935
- Joined: Fri Sep 24, 2010 9:38 pm
- Location: red river below texoma
Re: help !! 2007 gto airboat 350 starting issue.
Danger will roberson!! The perko switch is a major safety device designed to kill all power in the event of an emergency or if you have to get in or around the blender!BorderBandits wrote:Cool I will replace the ignition switch. Another mechanic suggested I run battery one directly to the engine instead of through the perko switch he says it's better to run it direct better connection. What you Guys think??
- GeeLeDouche
- Southern Airboat Member
- Posts: 1024
- Joined: Thu Oct 07, 2010 9:02 am
- Location: Northern Utah
Re: help !! 2007 gto airboat 350 starting issue.
IMO it sounds like a starter solenoid.. Cheap and easy to replace.. you can try the screwdriver trick that has already been mentioned and that would narrow it down.
16x8 Utah style hull With a Waterthunder motor W/ 2.3 CH3 reduction swinging a 3 blade 78" R.
&
17-51 Legend craft w/pods pushed by a MB HD7000
&
17-51 Legend craft w/pods pushed by a MB HD7000
Re: help !! 2007 gto airboat 350 starting issue.
Bdriller wrote: . . . Danger will Roberson !! . . .

You had better learn my name, you Texan! . . . Or I'll sick my robot on you!


"The suppression of uncomfortable ideas may be common in religion and politics,
but it is not the path to knowledge; it has no place in the endeavor of science." - Carl Sagan
but it is not the path to knowledge; it has no place in the endeavor of science." - Carl Sagan
-
- Southern Airboat Member
- Posts: 6
- Joined: Sun Mar 29, 2015 5:42 pm
- Location: Harlingen, Texas
Re: help !! 2007 gto airboat 350 starting issue.
Thanks everyone for the help it was the ignition switch. Now it works perfect and starts on the first try every time.
-
- Site Supporter - IV
- Posts: 935
- Joined: Fri Sep 24, 2010 9:38 pm
- Location: red river below texoma
Re: help !! 2007 gto airboat 350 starting issue.
wish I knew how to go fetch appropriate pics to fit certain subjects and copy and pastem!!Deano wrote:Bdriller wrote: . . . Danger will Roberson !! . . .
You had better learn my name, you Texan! . . . Or I'll sick my robot on you!
![]()
